Graco Fusion AP Gun Parts

Graco Fusion AP spray foam gun is one of the most popular devices in the foam insulation industry because of its unmatched efficiency and lightweight design. Gracos top-selling applicator for polyurethane foam and polyurea coating, the Graco Fusion gun offers many features that ensure less maintenance and increased longevity. Shop all Graco Fusion gun parts below.

Filters

Filters

Sort By:
Products per page
Apply Filters

Graco Fusion AP is Spray Foam Industry Leader

We carry a comprehensive lineup of Graco Fusion Spray Gun repair parts, including parts for the Fusion AP (Air Purge), Fusion CS (ClearShot) and Fusion Mechanical Purge spray guns. These replacement parts for Graco Fusion models are top quality and are being offered at SPF Depot discount prices. If you need some small and seemingly insignificant Graco Fusion foam gun parts, such as grease fittings or grease fitting covers, you'll find them here. You'll also find more significant spray foam gun for Graco Fusion model items such as complete front end assemblies, complete high-pressure seal kits, side cartridge assemblies and modified manual assemblies.

Get your Graco Fusion AP parts here and save. You'll also love our friendly, speedy service, with most items shipped within 24-48 hours.

Graco Fusion AP Diagram Quick Guide


Key:

  • A - A Side Fluid Valve (ISO)
  • B - B Side Fluid Valve (RESIN)
  • C - Air Cap
  • D - Air Line Quick Coupler
  • E - Muffler
  • F - Fluid Housing
  • G - Gun Fluid Manifold
  • H - Handle
  • J - Optional Air Inlet
  • K - Cleanoff Air Valve
  • L - Piston Safety Lock
  • M - CeramTip (behind air cap)
  • N - Optional Fluid Inlets (A Side Shown)
  • P - Lock Ring

Graco Fusion AP Specifications

CategoryData
Maximum Fluid Working Pressure3500 psi (24.5 MPa, 245 bar)
Minimum Air Inlet Pressure80 psi (0.56 MPa, 5.6 bar)
Maximum Air Inlet Pressure130 psi (0.9 MPa, 9 bar)
Maximum Fluid Temperature200� F (94� C)
Air Inlet Size1/4 npt Quick Disconnect Nipple
A Component (ISO) Inlet Size-5 JIC; 1/2-20 UNF
B Component (Resin) Inlet Size-6 JIC; 9/16-18 UNF
Sound Pressure81.1 dB(A), using AR5252 at 100 psi (0.7 MPa, 7 bar)
Sound Power, measured per ISO 9416-291.0 dB(A), using AR5252 at 100 psi (0.7 MPa, 7 bar)
Dimensions7.5 x 8.1 x 3.3 in. (191 x 206 x 84 mm)
Weight2.5 lb (1.1 kg)
Wetted PartsAluminum, stainless steel, carbon steel, carbide, chemically resistant o-rings

Graco Fusion AP Gun Replacement Parts

PartDetails
15B210Air cap - Round
15B211Front Cap
248137O-ring
248128Side seal O-ring
246349SST
277297PolyCarbolly side seal cartridge
246291fluid housing
100846Grease fitting
15B689Grease cap
248131O-ring
15B214Screw
117490Spring
257420Carbide ball
246731A side check valve
248129O-ring
248133O-ring
246012Complete manifold
246491Fluid housing
15B223Clean-off air valve
246354O-ring
100139Plug
15B221Bolt
246356Fluid Valve
117635A side swivel
246350SST
277296PolyCarbolly B side seal cartridge
248130Cart body O-ring
117491Spring
246348SST
249990PolyCarbolly Side seal
116550Retaining ring
248132O-ring
203953Screw
15C480Washer
192272Pin
117634B side swivel
15B209Trigger
AR2020Mixing Chamber - 0.020 orifice size (000)
AR2929Mixing Chamber - 0.029 orifice size (00)
AR3737Mixing Chamber - 0.037 orifice size
AR4242Mixing Chamber - 0.042 orifice size (01)
AR5252Mixing Chamber - 0.052 orifice size (02)
AR6060Mixing Chamber - 0.060 orifice size (03)
AR7070Mixing Chamber - 0.070 orifice size (04)
AR8686Mixing Chamber - 0.086 orifice size (05)
15K365Handle
248134O-ring
15B202Spool Valve
100721Plug
119626Muffler
15B203Piston
15B205Stop Piston
117485Spring
15B772Air Hose
15B208Air valve Plug
248135O-ring
248136O-ring
15B204Cylinder Cap
15B206Safety Cap
114070Spring
117509Quick disconnect- male
117510Air line Coupler
15B565Ball Valve

Graco Fusion AP Full Gun Diagram


No.- Part No. - Description - Qty

1248002 Graco Fusion AP HANDLE 1
215B208 Graco Fusion AP PLUG, air valve 1
3★15C374 Graco Fusion AP ACTUATOR; safety 1
4★15C390 Graco Fusion AP BUSHING, safety 1
5203953 Graco Fusion AP SCREW; 10-24 x 3/8 in. (10 mm) 1
6192272 Graco Fusion AP PIN 1
7��◆Graco Fusion AP HOUSING, fluid 1
8118145 Graco Fusion AP SPRING, purge rod 1
915C375 Graco Fusion AP AIR CAP 1
10★15C373 Graco Fusion AP CAP, rear 1
11�◆15B215 Graco Fusion AP RING, lock 1
12246012 Graco Fusion AP MANIFOLD, fluid, 2-hose; includes 12a-12g 1, 249523 Graco Fusion AP MANIFOLD, fluid, 4-hose; includes 12a, 12b, 12d-12g, 50, 1
12a�246012 Graco Fusion AP MANIFOLD 1

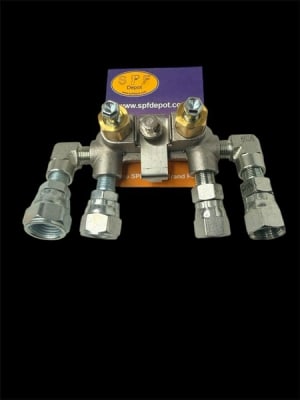

12b246356 Graco Fusion AP VALVE, fluid 2
12c100139 Graco Fusion AP PLUG, pipe; 1/8-27 npt 2
12d15B221 Graco Fusion AP BOLT; 5/16-24 1

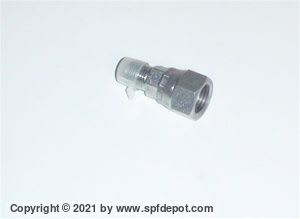

12e117634 Graco Fusion AP SWIVEL, B side; 1/8 npt(m) x no. 6 JIC(f); for 2-hose manifold, 1 117634 Graco Fusion AP SWIVEL, B side; 1/8 npt(m) x no. 6 JIC(f); for 4-hose manifold, 2
12f117635 Graco Fusion AP SWIVEL, A side; 1/8 npt(m) x no. 5 JIC(f); for 2-hose manifold, 1 117635 SWIVEL, A side; 1/8 npt(m) x no. 5 JIC(f); for 4-hose manifold, 2
12g15B993 Graco Fusion AP SPRING, ring, lock 1
1315B209 Graco Fusion AP TRIGGER 1
14*★248136 Graco Fusion AP O-RING, rod stop; package of 6 1
15★15C372 Graco Fusion AP STOP, purge rod 1
16*248135 Graco Fusion AP O-RING, piston; package of 6 1
17★118144 Graco Fusion AP SPRING, piston safety lock 1
18★248095 Graco Fusion AP O-RING, purge rod; package of 6 1
19248096 Graco Fusion AP O-RING, piston shaft; package of 6, 1
20248138 Graco Fusion AP O-RING, housing, small; package of 6, 1
21�◆*248132 Graco Fusion AP O-RING, housing, large; package of 6, 1

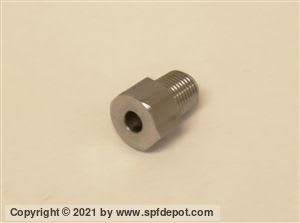

22119626 Graco Fusion AP MUFFLER 1
23�15C378 Graco Fusion AP NUT, rod seal, rear 1
24�*246354 Graco Fusion AP O-RING; package of 6 1
2515C377 Graco Fusion AP NUT, mix module 1
26117485 Graco Fusion AP SPRING, air valve 1
2715B202 Graco Fusion AP SPOOL, air valve 1
2815C376 Graco Fusion AP RETAINER, CeramTip 1
29100721 Graco Fusion AP PLUG, pipe; 1/4-18 npt 1
30117509 Graco Fusion AP QUICK-DISCONNECT, male, air; 1/4 npt(m), 1
31248001 Graco Fusion AP ROD, purge; includes 1 of item 18 1
3215C371 Graco Fusion AP PISTON 1
34117661 Graco Fusion AP VISE, pin; dual reversible chucks 1
35�◆116550 Graco Fusion AP RING, retaining 1
36�246731 Graco Fusion AP VALVE, check, A side; includes 36a-36g, 246352 VALVE, check, B side; includes, 36a-36g
136a��Graco Fusion AP HOUSING 1
36b��15B214 Graco Fusion AP SCREW; 5/16-18 x 1/2 in. (13 mm), 1
36c�104396 Graco Fusion AP BALL; carbide 1
36d�Graco Fusion AP SCREEN; see page 54 1
36e�117490 Graco Fusion AP SPRING 1
36f�*248133 Graco Fusion AP O-RING, check valve face; package of 6, 1
36g�*248129 Graco Fusion AP O-RING, check valve housing; package of 6, 1
37â–²222385 Graco Fusion AP TAG, warning; not shown 1
39Graco Fusion AP MODULE, mix, round, standard; see page 50, 1; Graco Fusion AP MODULE, mix, flat, standard; see page 50, 1; Graco Fusion AP MODULE, mix, round, direct impingement; see page 51, 1 MODULE, mix, flat, direct impingement; see page 51, 1
40CeramTip; see page 52 1
44�15C382 VALVE, cleanoff air 1
46��*248003 SEAL KIT, purge rod; includes 4 seals, 1
48117510 COUPLER, air line 1
4915B772 HOSE, air; 1/4 npsm (fbe); 18 in. (0.46 m), 1
50112307 ELBOW, street;1/8 npt (m x f) 2
5115B565 VALVE, ball; 1/4 npt (m x f) 1
5215B817 MANIFOLD, gun flush 1
53117642 NUT DRIVER, hex; 5/16 1
54118575 SCREWDRIVER; 1/8 blade 1
55197979 COVER, gun; not shown 1
5615C480 WASHER, wave 1
57â– 118665 LUBRICANT, Fusion Gun; 4 oz, (113 gram), 1
58â–²15D235 SIGN, instruction 1
59★15D329 STOP, rod 1
60★115452 RING, retaining 1
*These parts are only available in repair kits.To select a kit,refer to Gu nRepair Kits on page 54.
�These parts are not available singly.
�These parts are included in Front End Replacement Kit 246875 (includes 1 of items 24 and 46).
★These parts are included in Safety Stop Assembly 248028 (includes 1 of item 18).
â–²Replacement Danger and Warning labels, tags, and cards are available at no cost.
â– Available in 248279 Kit, package of 10. See page 55.
â—†Available in Fluid Housing Assembly Kit 248004
