Graco 2007100 (Old #15M669) High Pressure Transducer

The Graco 2007100 High Pressure Transducer replaces obsolete Graco part number 15M669. This sensor is installed in the high-pressure fluid manifold where it monitors actual spray pressure and provides feedback to the control system. The sensor is commonly referenced as a Fluid Outlet Pressure Sensor, Manifold Pressure Sensor, or High Pressure Transducer.

Common Symptoms of Failure

• E21 Pressure Sensor Fault
• E22 Pressure Sensor Fault

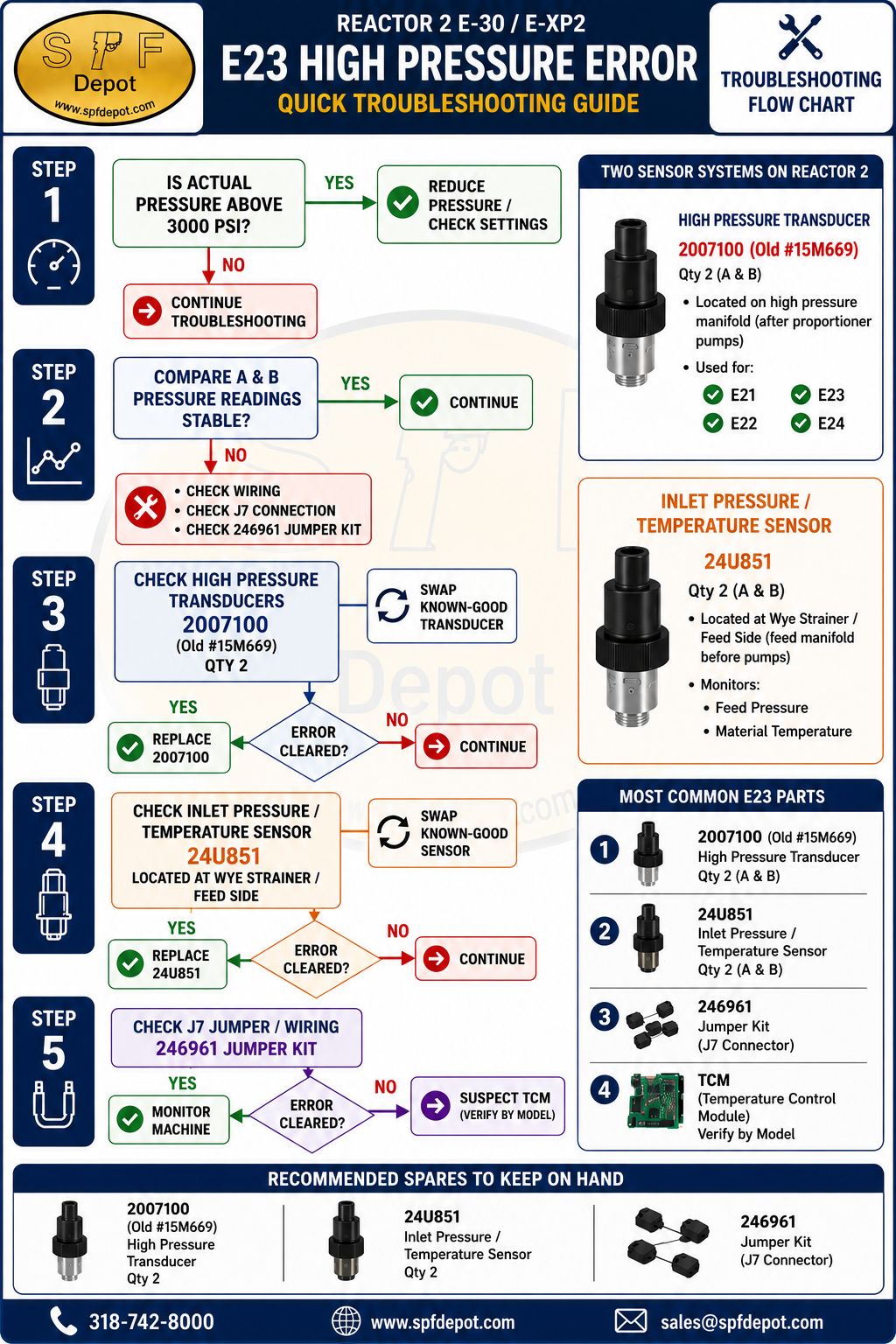

• E23 High Pressure Error
• E24 Pressure Imbalance Error
• Erratic pressure readings
• Pressure displayed does not match gauge readings

Do Not Confuse With

24U851 Pressure/Temperature Transducer

• Located in the inlet manifold / wye strainer assembly
• Monitors feed pressure and material temperature

2007100 (15M669)

• Located in the high-pressure fluid manifold
• Monitors actual spray pressure after the proportioner pumps
