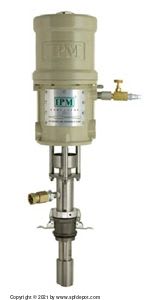

IPM-IP30 30:1 Pump
IPM-IP30 30:1 Pump

Retail Price: $4,136.00
Uses Leasable

Availability:: Usually Ships in 24 to 48 Hours
Product Code: IPM-841101


IPM Transfer Stick Pumps to Replace Graco T1 and T2 Series Transfer Pumps

The IP 30 30:1 pump is the best high-viscosity transfer pump for thicker fluids and a variety of materials, including polyurethanes, paints, coatings and more. The electric drum pump has a long lifespan because it is designed to keep piston seals from coming into contact with the material being pumped, so you won't have to worry about ruptured seals over time. The IP30 electric drum pump can replace Graco T1 and T2 series transfer pumps.

Fluid Ratio :30:1
Max Output Flow Int :NA
Max Output Flow Cont :1.0 gpm (3.79 ipm)
Max Output Pressure :5400 psi (372.4 bar)
Max Air Input Pressure :180 psi (12.4 bar)
Air Inlet Port :1/2" npt(f)
Fluid Outlet Port :3/8"npt(f)
Rod Piston Packings :UHMWPE/Teflon
Other Seals :Rubber
Rod Cylinder :Stainless Steel
Other Wetted Parts :Stainless Steel
Weight :NA
Weight Stubby Drum :16.6Kg
Package :8.5"x8.5"x35.4"(215mmx215mmx90cm) 16.6 Kg
Model Number :
841101(Stainless Steel)
