Graco Fusion AP Chamber AR and AW Series SPF aftermarke

Graco Fusion AP Chamber AR and AW Series SPF aftermarke - Image 1 of 0

Graco Fusion AP Chamber AR and AW Series SPF aftermarke - Image 2 of 0

Graco Fusion AP Chamber AR and AW Series SPF aftermarke - Image 3 of 0

Graco Fusion AP Chamber AR and AW Series SPF aftermarke - Image 4 of 0

Graco Fusion AP Chamber AR and AW Series

7 Reviews

Choose your options:

Product Code: SPF-Chambers

SAME DAY Shipping

Qty:

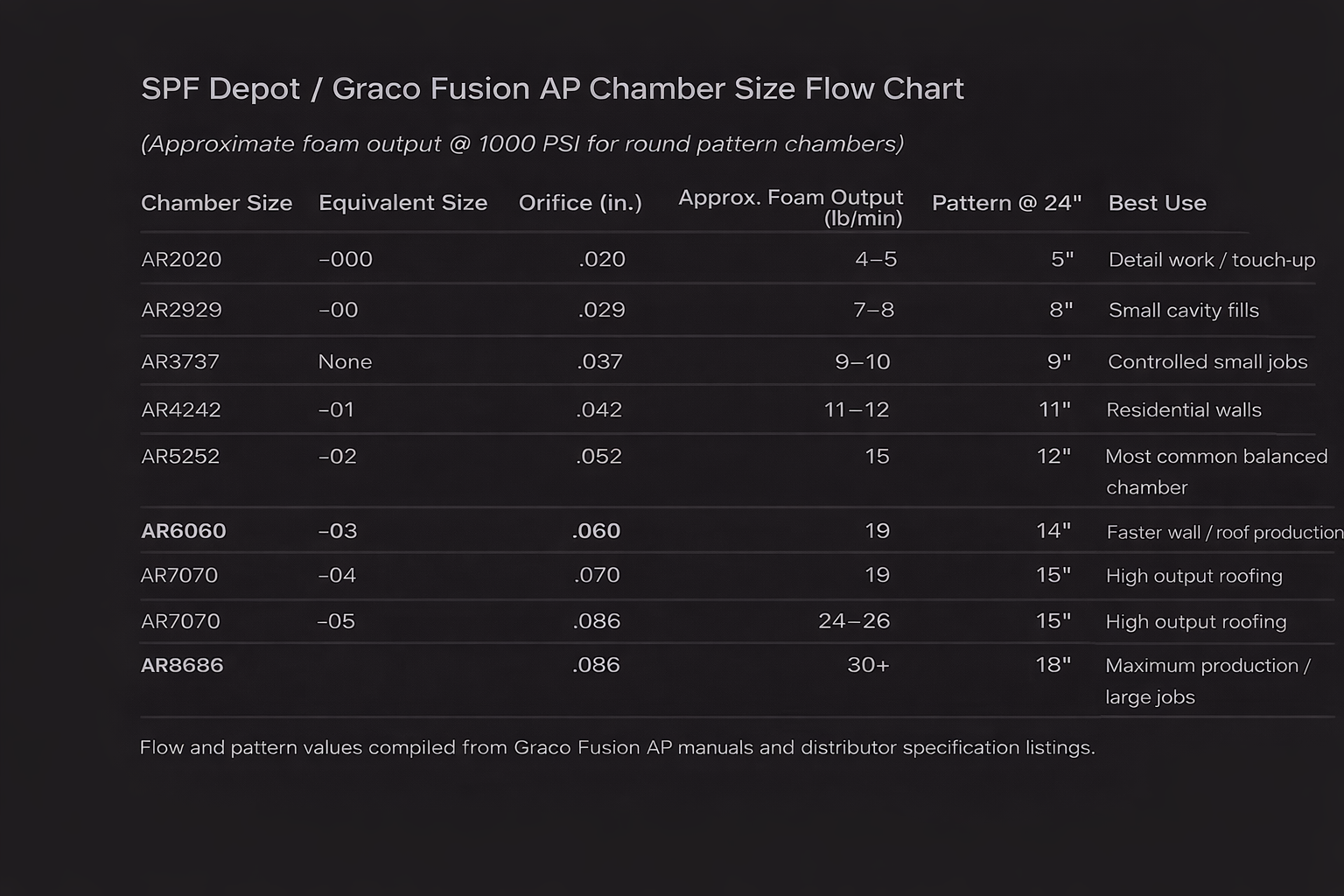

-Fits Graco Fusion AP spray foam guns -AR and AW chamber series available - OEM and SPF Depot brand options - Same-day shipping available Not sure which chamber you need See our Fusion AP Parts and Maintenance Guide. Chamber Specifications-

Graco Fusion AP and AW Chambers IN STOCK. Available in AR29, AR37, AR42, AR52, AR60, AR2232, AW46, AW57

Q: What sizes of mix chambers are available for Fusion AP?
A: Sizes range from small (AR2020/AR2929) to large (AR6060/AR7070), corresponding to increasing flow capacity and orifice sizes.

Q: What does the “AR” vs “AW” designation mean?
A: “AR” indicates Air Purge round pattern chambers, and “AW” indicates wide pattern chambers for broader spray.

Q: Do chambers include cleanout drills?
A: Some chambers sold through distributors include cleanout drill bits with the kit; check SKU details.

Q: I constantly have crossovers. Is it the O-Rings I use?
A: Most issues are where the side seal rides on the chamber surface. They both have to be flat. Over sanding them hurts. O-rings are issues if you're spraying Carb and Brake cleaner solvents into your gun. Solvents dry the rubber out. If the O-Rings break when you remove them, they are dried out.
